Zoleo Universal Mount kit
Overview
Item Overview
Ideal for securing the ZOLEO satellite communicator on the windscreen of a vehicle or vessel, the ZOLEO Universal Mount Kit secures the ZOLEO device in place and keeps it charged.
This kit includes the a USB car charger, RAM® Twist-Lock™ Suction Cup Mount for a strong hold on glass and non-porous plastic surfaces, and an adjustable arm. It also includes the complete ZOLEO Cradle Kit.
The cradle locks the ZOLEO device in place when used with any of the interchangeable inserts. To swap an insert, simply remove the ZOLEO device from the cradle and slide the new insert into place.
More info on Zoleo Satellite Communicator here
Compatible Devices
This Cradle Kit is compatible with the following unit:
Zoleo ZL1000 Satellite Communicator
Specs
RAM® Mount Components
- Suction Cup Dimension: 8.38 cm (3.3 in) in diameter
- Weight: 118 g (4.16 oz)
- Ball: B Size 2.54 cm (1 in) rubber ball
- Dimensions: 9.47 cm (3.73 in)
- Weight: 140.6 g (4.96 oz)
- Dimension: 63.5 mm (2.5 in) in diameter
- Weight: 72.57 g (2.56 oz)
- Stud: ¼”-20 threaded steel stud
- Ball: B Size 2.54 cm (1 in) rubber ball
- Single USB port for use with the included USB to Micro-USB cable
- Input Voltage: 12-24 V
- Output Voltage: 5 V
- Max Current (A): 2.5 A
- 1.2 m (3.9 ft) (USB to Micro-USB)

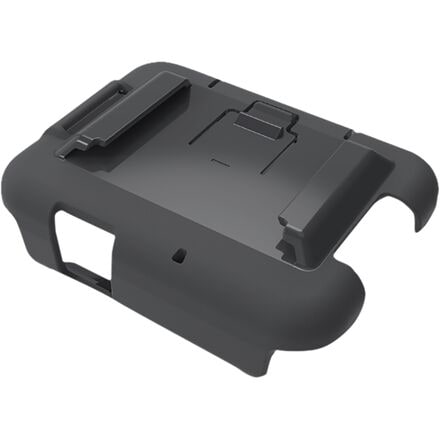

The main cradle secures and protects your ZOLEO device and includes a locking tab to enable easy installation or removal of all included clips/inserts.
- Dimension: 74.5 x 95.0 x 27.8 mm (2.93 x 3.74 x 1.09 in)
- Weight: 3.0 g (0.10 oz)
- Colour: Grey
Secures your ZOLEO device to be worn on a belt.
- Weight: 2.0 g (0.07 oz)
- Colour: Green
Secures your ZOLEO device flat against a backpack or other installations using a strap or tether. Simply slip the strap through the insert.
- Fits straps up to: 25 mm (1 in)
- Weight: 1.0 g (0.03 oz)
- Colour: Green
Secures your ZOLEO device to any universal camera mount. Ideal for use with other RAM mounts and other accessories with a camera mount.
- Weight: 1.5 g (0.05 oz)
- Thread Type: ¼”-20 UNC
- Colour: Green
In the box
- USB car charger, for use with any 12-24 V power source
- A RAM® Twist-Lock™ Suction Cup Mount with 1/4″-20 UNC threaded camera adapter
- Double socket arm (adjustable to the desired look-angle)
- Micro-USB cable, 1.2 m ( 3.9 ft)

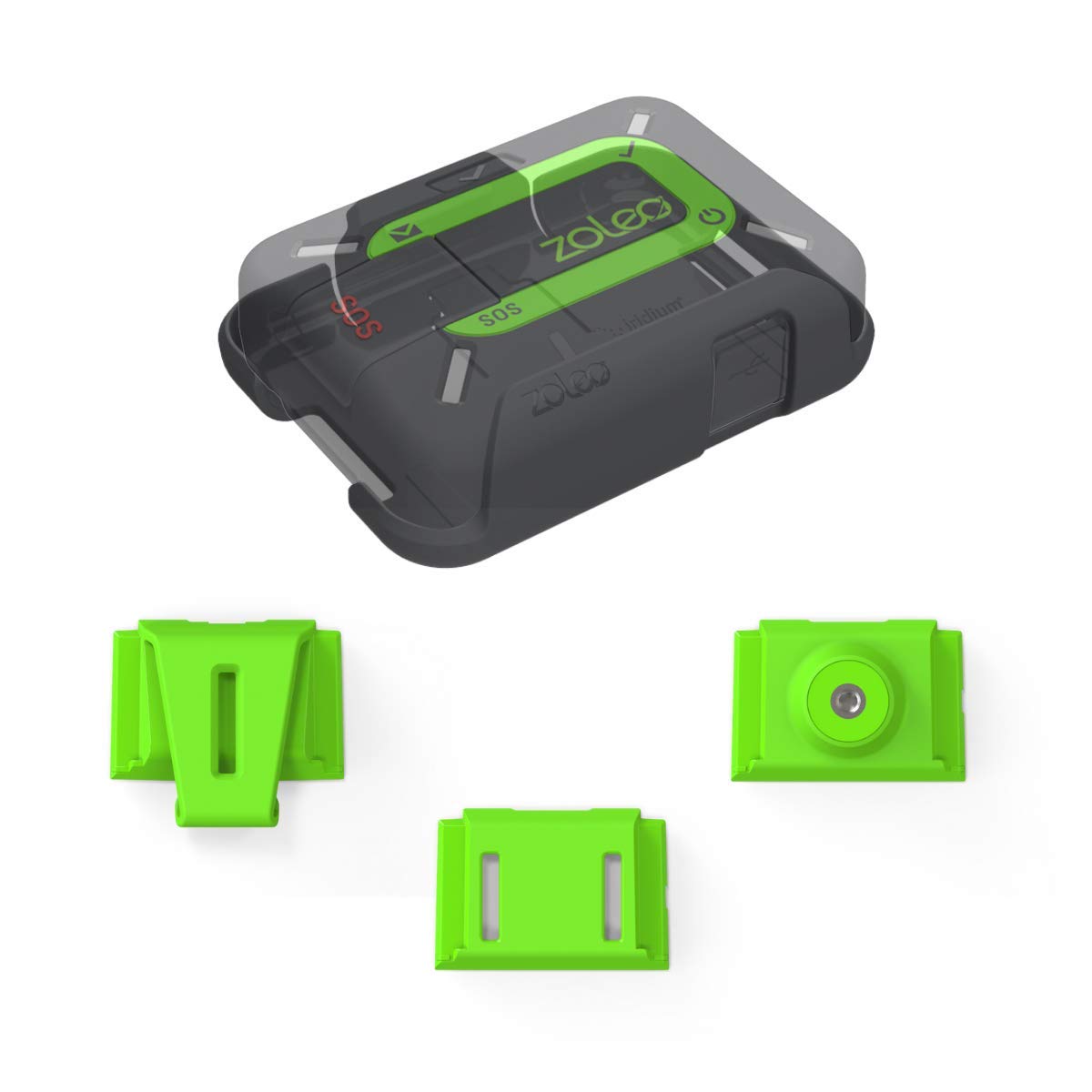

- ZOLEO Cradle Kit made up of the following 4 x items:
Main cradle
Belt clip insert
Camera mount insert
Strap infill insert (max. strap width 2.5 cm (1 in)) - Quick Start Guide
