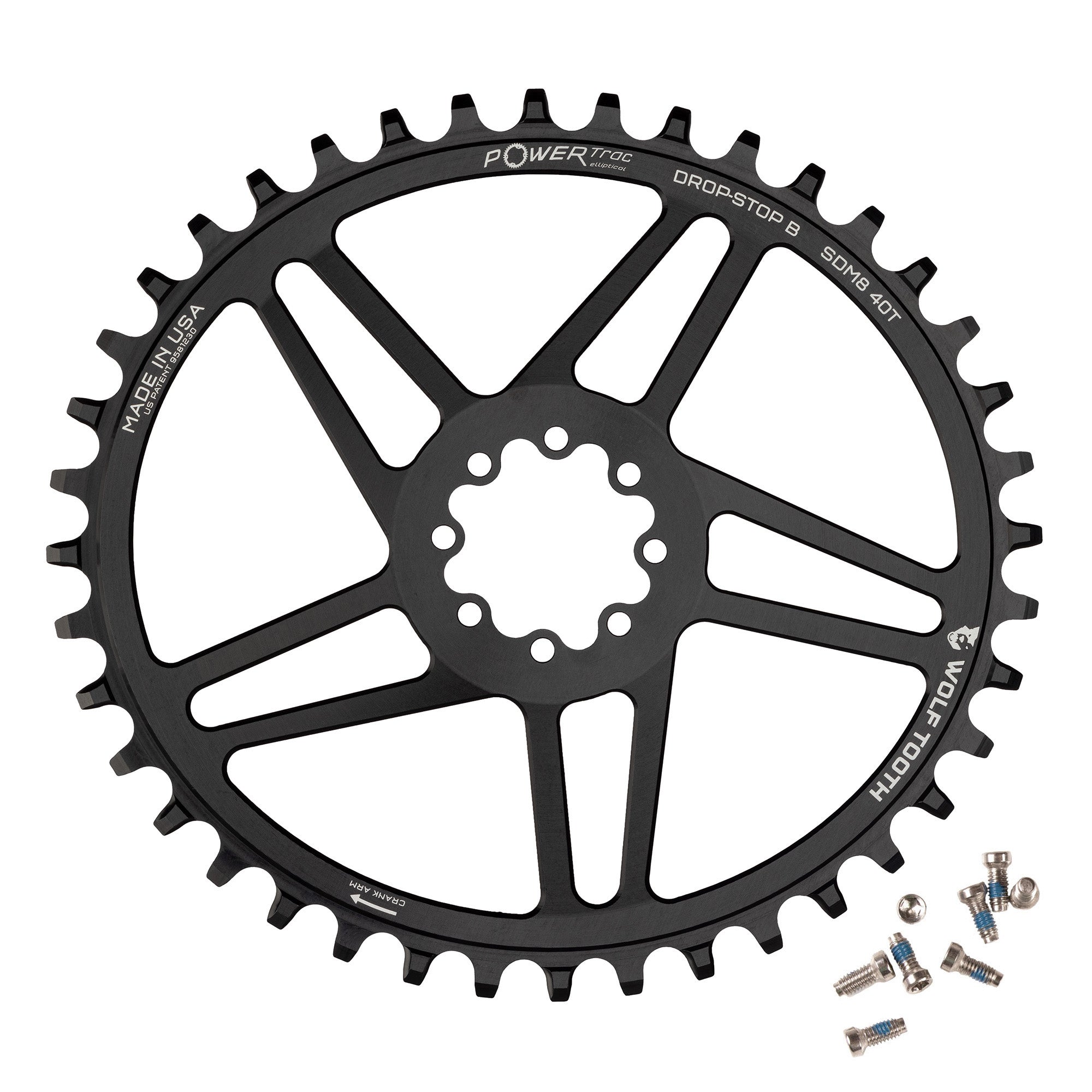

Wolf Tooth Elliptical Direct Mount Chainring for SRAM 8-Bolt
The Wolf Tooth Elliptical Direct Mount Chainring for SRAM 8-Bolt is designed to replace your existing chainring and spider, the direct mount chainring for SRAM AXS cranksets or the direct mount chainring for cranksets using the 8-bolt mounting standard.
Since it uses Wolf Tooth’s Drop-Stop B tooth profile, which is narrower than the classic A profile, it will work with all 9, 10 and 11 speed chains as well as 12 speed SRAM Eagle, Campagnolo®, KMC and SRAM Flattop AXS Chains.
It is 6mm offset from the mounting surface, with a chainline of 45mm from the centre of the bike, making this chainring best suited for inclusion in SRAM direct mount cranksets with road cranks. As with all chain rings with the Drop-Stop tooth profile, it will be long lived, thanks to low friction and a wide contact area, and will shed mud with ease.
Its use of PowerTrac EllipticalTM technology ensures that it will engage the chain well at the most powerful point of your downstroke, then do the same at the weakest point of the pedal stoke, maximising its efficiency. For that reason, a PowerTrac EllipticalTM ring matches the power of the next biggest circular ring on both parts of the stroke.
Even better, thanks to the fact that Wolf Tooth’s PTE rings are 10% less ovalised than equivalent chainrings from other brands, with less aggressive timing, your pedal stroke will feel as smooth as with a round chain ring. This ensures even power transfer, leading to improved traction on technical climbs.
Key features:
- Designed to replace your existing chainring and spider or fit SRAM AXS cranksets/cranksets using the 8-bolt mounting standard
- With narrow Drop-Stop B profile, still with the wide/narrow design that prevents chain drop and promotes longevity, but suitable for accommodating Flattop chains
- Available in 38, 40, 42 and 44 tooth models
- Made from 7075-T6 aluminium
- Made in the US
Compatibility:
- Compatible with all 9, 10 and 11 speed chains
- Also compatible with 12 speed SRAM Eagle, Campagnolo®, KMC and SRAM Flattop AXS chains
- Not compatible with 12 speed Shimano HG+ chains
