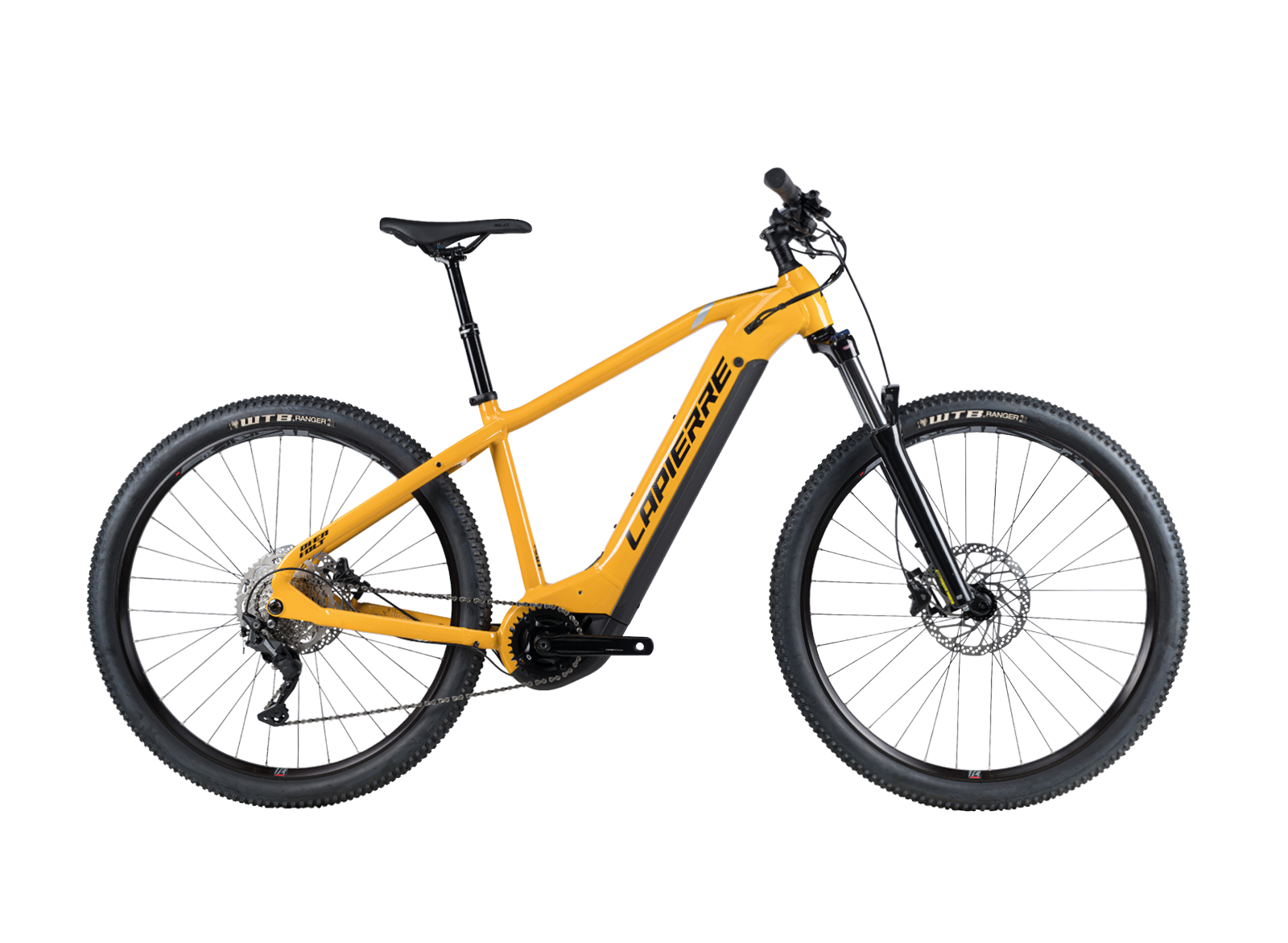

Overvolt HT 7.6 eBike
The Overvolt HT range is easy to ride and capable of taking you wherever you want to go. The Overvolt HT’s offer comfort and control by being easy to master and comfortable to maximise your enjoyment.
- Full Aluminium Frame
- Yamaha PW-ST 70Nm Motor System
- Intube 630Wh Battery
- Yamaha Side Switch 1.7″ LCD 7 Function Display
- SR Suntour XCM 34 NLO 120mm Travel Fork
- 29″ Wheel Set-up – DA210 / Rodi Wheelset
- WTB Ranger Comp Tyres
Essentials
Brake Lever
Shimano MT400 hydraulic brakes
Brakes Front
Shimano ASMRT30 203mm/ 180mm Centerlock

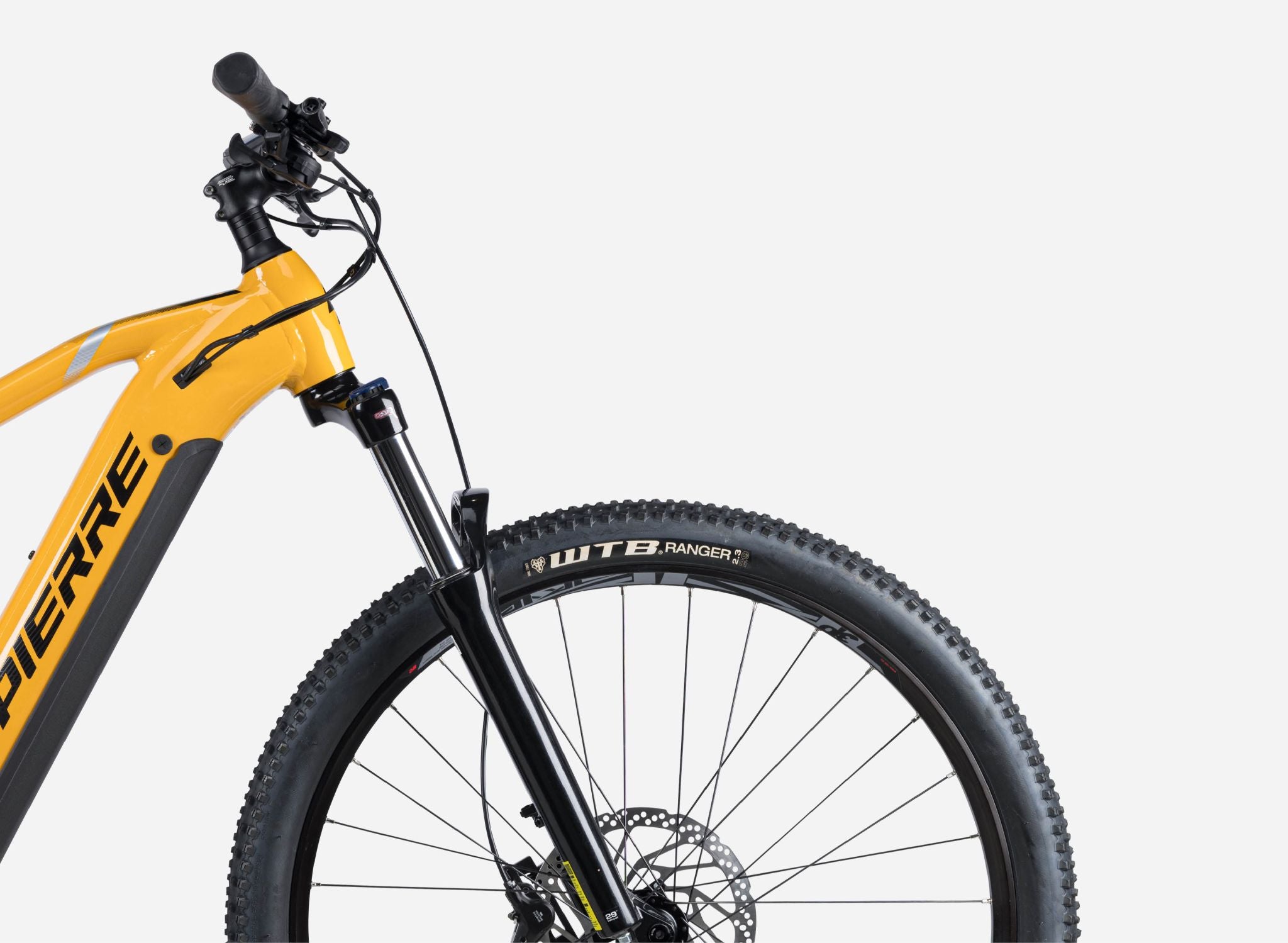

Fork
SR Suntour XCM 34 NLO 15×110, 29″, 120mm travel
Frame
Overvolt Yamaha Supreme 5 Alloy

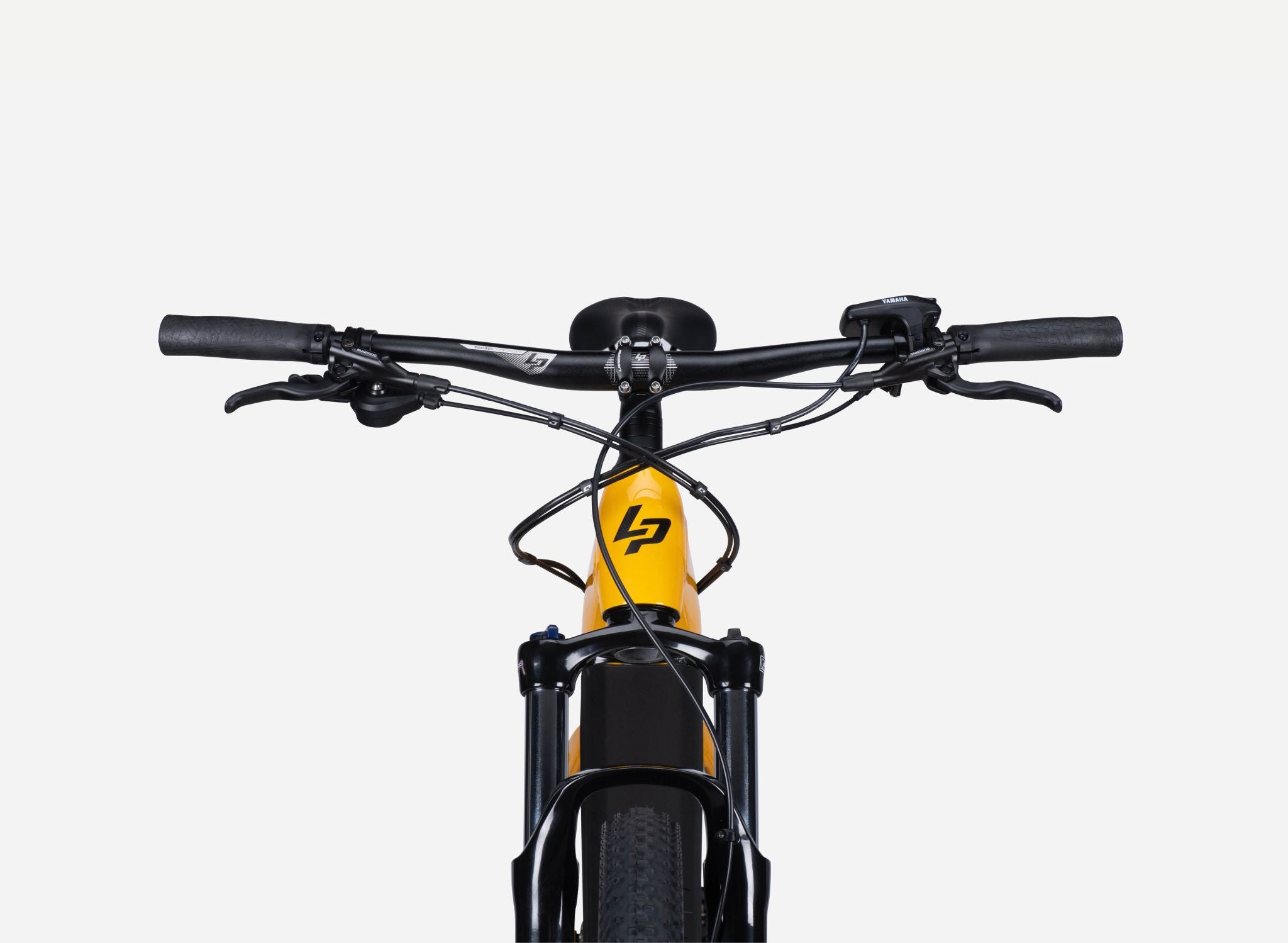

Handlebar
Lapierre Alloy 6061 DB, Width: 740mm, Rise: 15mm, Ø: 31.8mm
Headset
FSA Orbit 1.5 ZS NO.57SC
Model Year
2022
Pedals
XLC by VP
Stem
Lapierre alloy, Ø: 31.8mm, L: 50mm
Electric bike
Battery Watts per Hour
630Wh
Display
Display A
E-Bike
Yes
Motor
Yamaha PW-ST ”25kph” / Intube battery 630Wh / display A
Wheels
Rim
Rodi Tryp 30 tubeless ready, 30-622 (29″) 32H, Rodi Tryp 30 tubeless ready, 30-584 (S) 30-622 (M/L) 32H
Tyres
WTB Ranger Comp 2.3×29”
Drivetrain
Chain
KMC e10 Sport Silver-black 10s
Crankset
Lapierre Overvolt 170mm, 32T narrow wide
Front Wheel Hub
DA210, boost 15×110, 32H 6 center lock
Rear Derailleur
Shimano Deore RD-M5120, 10-S Shadow +
Rear Wheel Hub
Lapierre DA210, 4 sealed bearings, boost 12×148, 32H Center Lock
Sprocket
Sunrace CSMS2 10spd 11-46T Black
Additional
Accessories
Charger 4A
