Ole Hickory Pit CTO-DW: The Ultimate Smoker for Backyard BBQ Pros. Unmatched Performance, Legendary Flavour

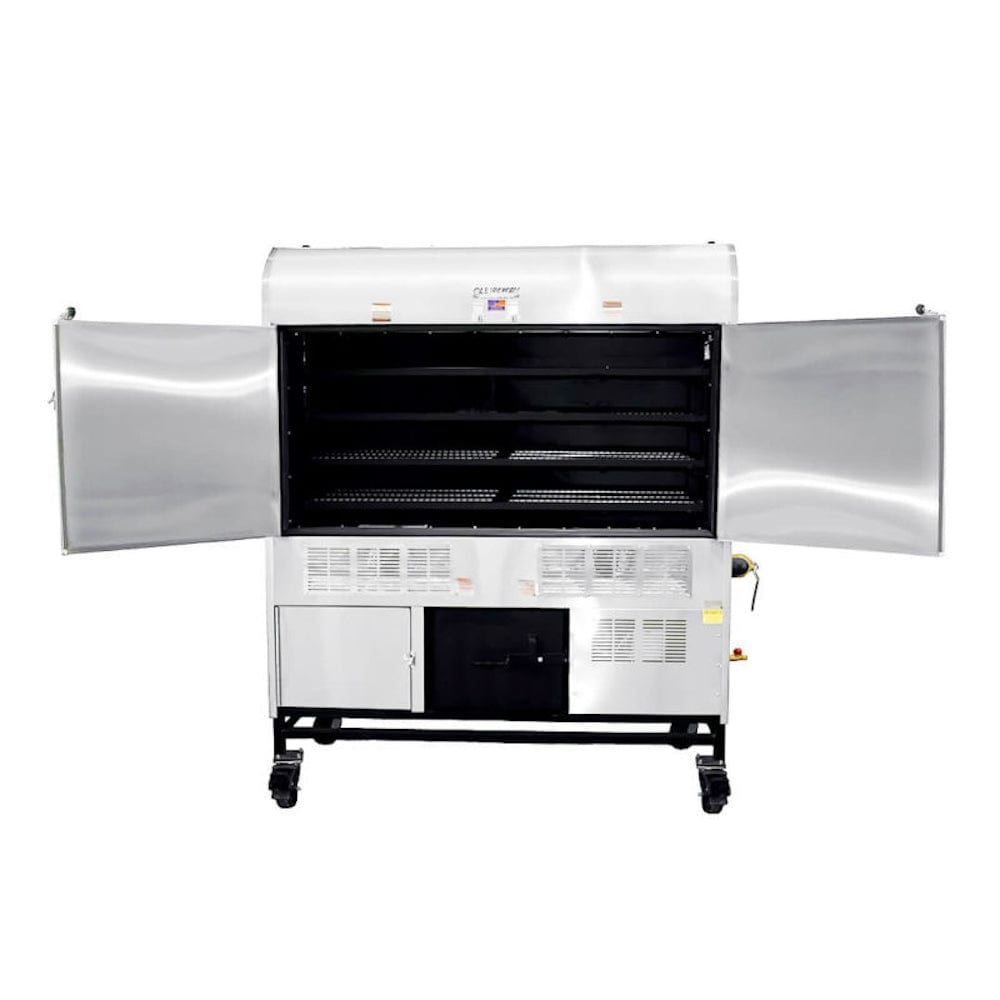

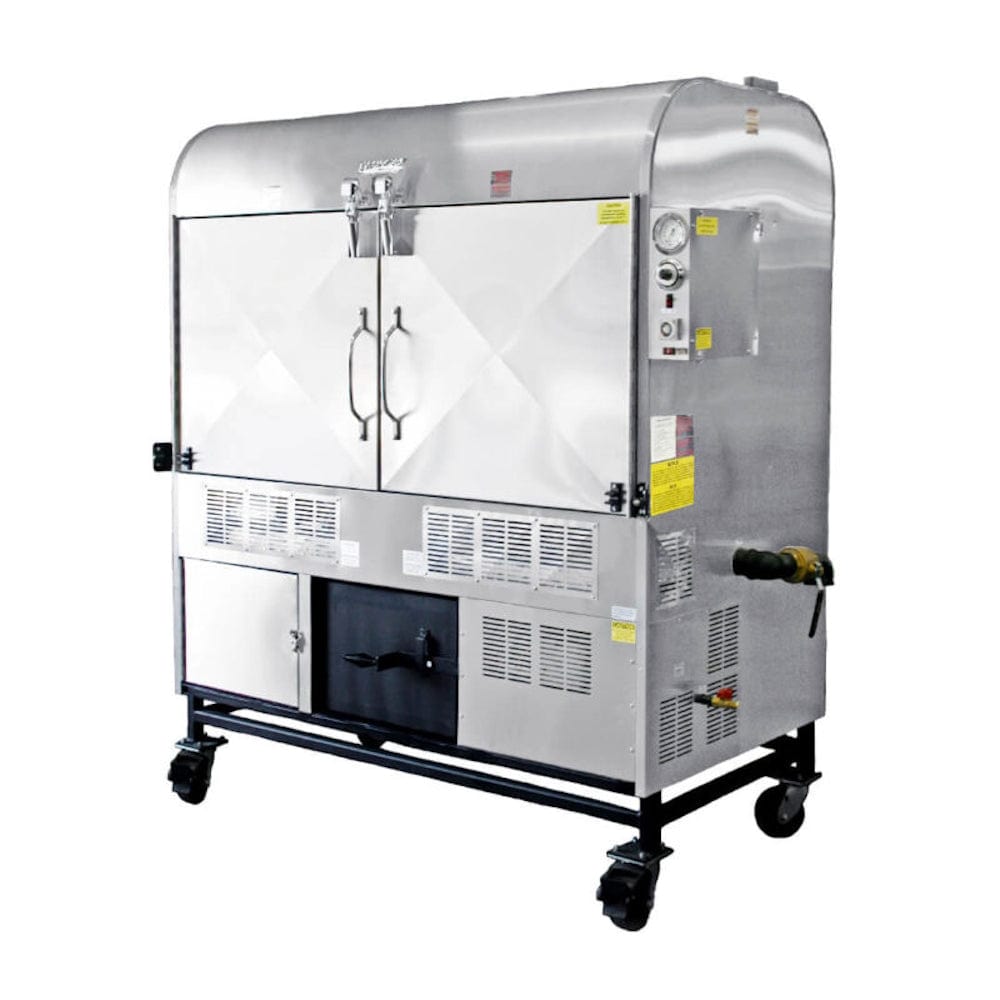

The CTO-DW is twice the size of a CTO and uses our patented technology to achieve the heat movement used in the convection ovens. The CTO-DW is offered in two different rack configurations. The standard four rack and the split eight rack configuration. With the eight-rack configuration, it will allow you to use the same racks that are in the CTO with a divider in the middle of the pit to optimize your cooking capacity.
- Sliding Racks: (4) 26″ x 55.75″
- Cooking Surface: 40 Sq. Ft
Capacity:
- Brisket: 30 (12 lbs)
- Ribs: 48 (3 & Down)
- Boston Butt: 60 (10 lbs)
- Turkey: 32 (14 lbs)
- Chicken: 108 Half
96 Whole (3.25 lbs)
Product Features:
- Construction: Heavy duty 12 gauge steel Interior side walls (100% welded & inspected seams) tubular steel frame1 22 gauge stainless steel exterior, mineral wool insulation – rated 1200 degrees F. (contains no asbestos or fiberglass)
- Electrical; 110 volts, 60 HZ, single phase, 15 amp- AVOID NON-GROUNDED EXTENSION CORDS.
- Gas Burner: One (1) 65,000 BTU burner with electronic ignition. Available for LPG (Propane) or natural gas.
- Firebox; Two (2) regular fireplace-size logs will last for up to 6 hours of cooking with patented Convecture TM circulation.

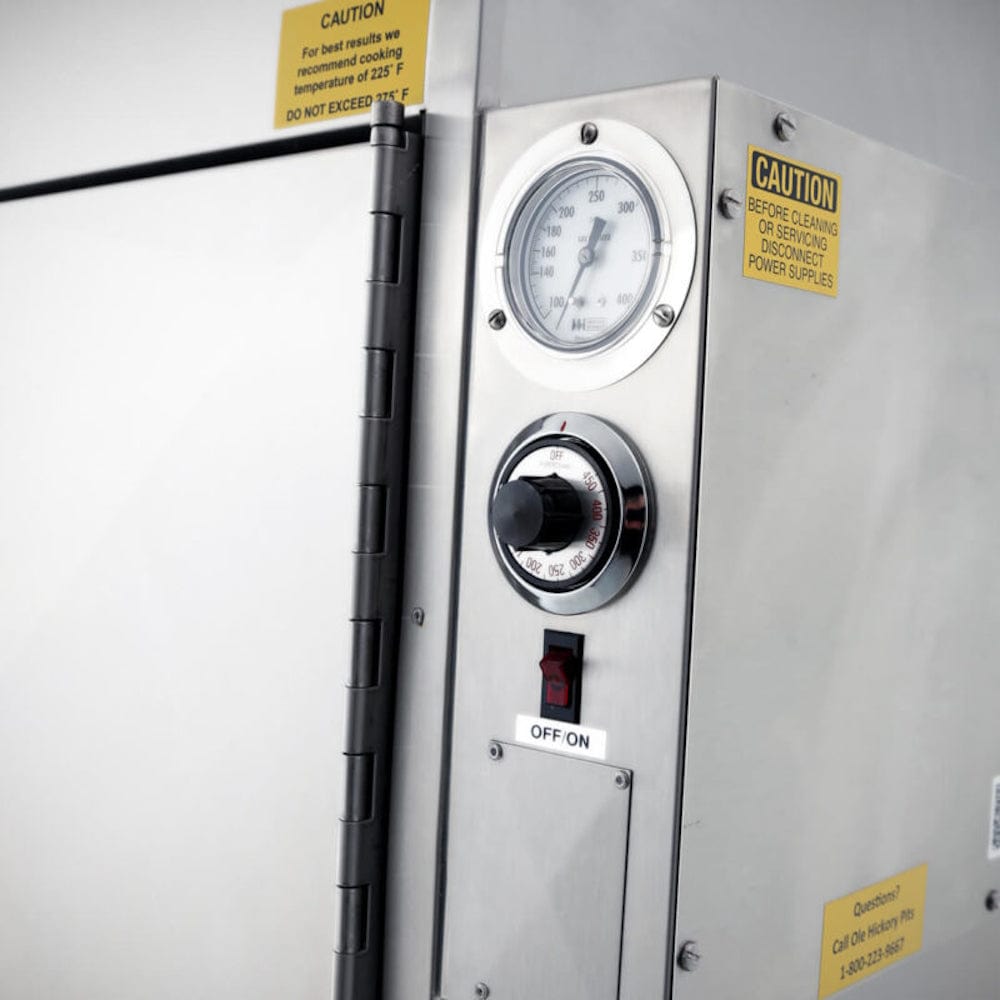

- Temperature Range; The Thermostat control ranges from 100 degrees F. to 325 degrees F.
- Upper limit Control Switch; Extra safety feature (set at 350 degrees F).
- Dial Thermometer: 2 1/2″ diameter.
- Casters: Four (4) Heavy duty, ETL approved.
- ConvectureTM System: Two (2) 1/30 HP Turbo Fan motors with 5″ fan blades provide a mix of both heat and smoke for product consistency.
- Exhaust: Two -3/4″ x 51/4″ Vents.

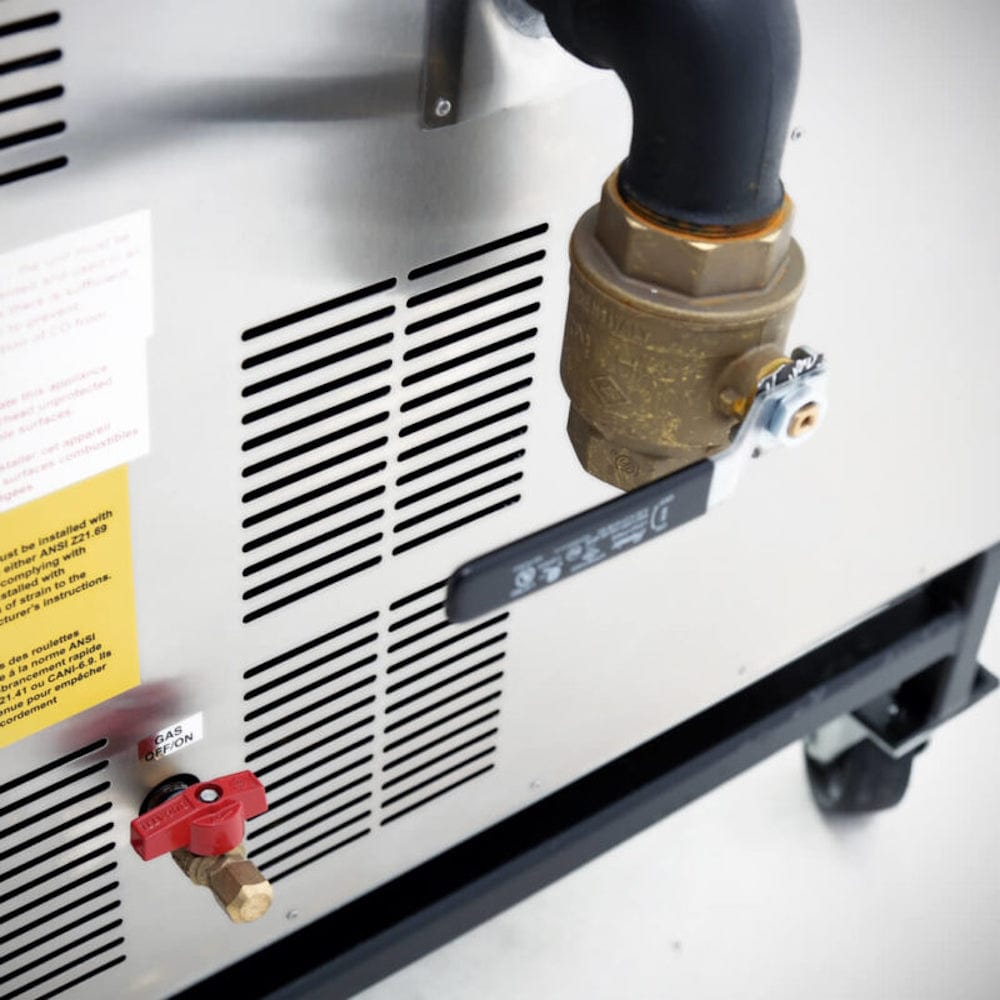

- Grease Drain: 2″ Pipe with 2″ Ball Valve.
- Weight: 1,660 lbs, uncrated.
- Sliding Racks: 4 Racks, 26″ X 55 3/4″, 40 Sq. Ft. total cooking surface. Nickel-chrome (stainless available at extra cost) removable for easy cleaning.
- Standard Equipment: Standard CTO-DW: (2) Back up Fan Blades, (1) Ash Rake that doubles to hook to both types of fire baskets to safely handle as necessary, (4) 6.5″ Casters, Flue Brush, & Owner’s Manual. Each customer will also have their choice of A fire basket for either burning wood logs only or a Charcoal Style that holds both charcoal and wood.
-
Optional Equipment:
-
- Cook and Hold
- Burner Switch: 8 Rack Configuration
- Lazy Sooey
- Probe Port Hole
- Locking Control Cover
- Leg Extensions
-
Dimensions:
Firing Up Your CTO-DW Clip:
Downloadable Resources / PDF:
- Spec Sheet
- Owner’s Manual
