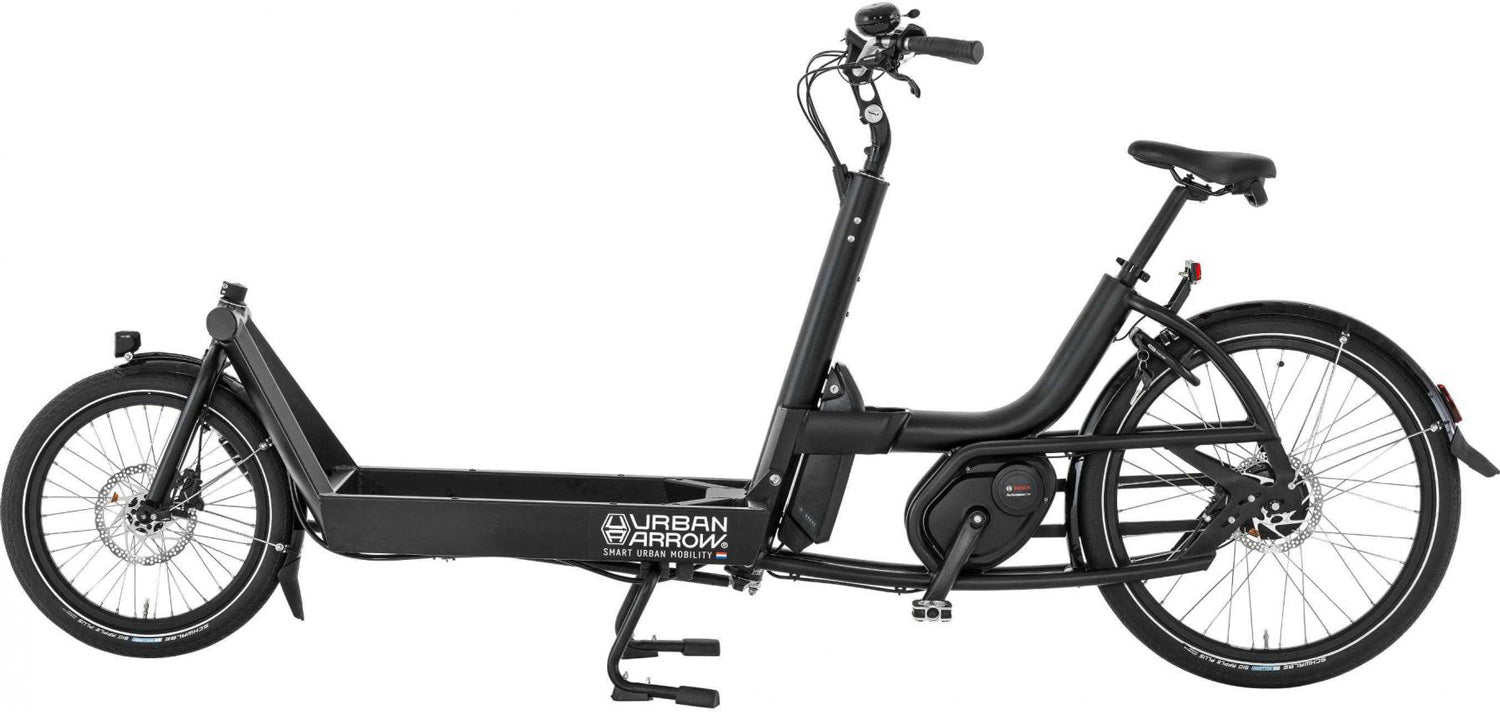

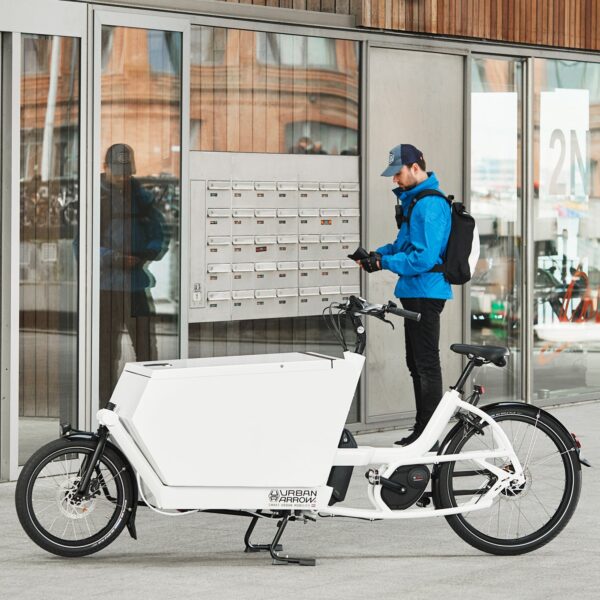

Cargo L
The Urban Arrow Cargo has revolutionised how businesses deliver goods across European cities. Faster than vans, the Cargo range can weave through traffic, avoid congestion and ULEZ charges, and still delivery a huge volume of goods to other businesses and customers.
Able to use cycle lanes and go anywhere in the city, the Cargo range has seen huge popularity in winding streets where vans and even the smallest cars may struggle to access.
No matter what you deliver – whether it’s cold food, hot food, delicate or bulky items, the Cargo boxes can be customised to your needs.
The high performance 250W Bosch motors means moving even heavy goods is easy, assisting you from a standstill and conquering hills.
Shimano hydraulic disc brakes give a huge amount of stopping power, and a N380 Enviolo gearing system providing a smooth, flowing gear change around the city.
This is the most popular Cargo model. A great variety of companies are deploying the Cargo L for their inner-city distribution. It is quick, has a near zero tendency to get stuck in traffic and maintains enough load capacity to haul some serious volume. The Cargo L adds to the dynamism of the city traffic whilst cutting sound and air pollution. Except for the Shorty all Cargo models are equipped with the strong Bosch Performance motor or Bosch’s new Cargo Line.
Urban Arrow Spec Sheets 2020 PDF
Flightcase | Aluminium Box | |
External Dimensions* | 96 / 70 x 70 x 60 | 100 / 68 x 55 x 65 |
Internal Dimensions* | 94 / 67 x 65 x 56 | 71 x 46 (Opening Size) |
Volume Capacity | 300 Litres | 260 Litres |
60 x 40 Euro Crate Capacity | 4 | 4 |
Weight | 15kg | 17kg |
Colours | – | Black or White |
*Top / Bottom Length x Width x Depth
Bosch | Performance | Cargo Line |
Torque | 60Nm | 75Nm |
Battery | 400Wh | 500Wh |
Brakes | Hydraulic | Hydraulic |
For? | Hilly City, heavier loads | Mountain performance, very heavy loads |
- Luggage Capacity: Up to 300 Litres – equivalent of 4 Euro Containers (60 x 40)
- Bike Weight: 47KG
- Max Load Capacity: 275kg
- Motor: 250W
- Max ECO Range: 50 Miles
- Average Laden TURBO Range: 25 Miles
- Average Dual Battery Range: 50 Miles
- Rear Wheel: 26″
- Front Wheel: 20″
