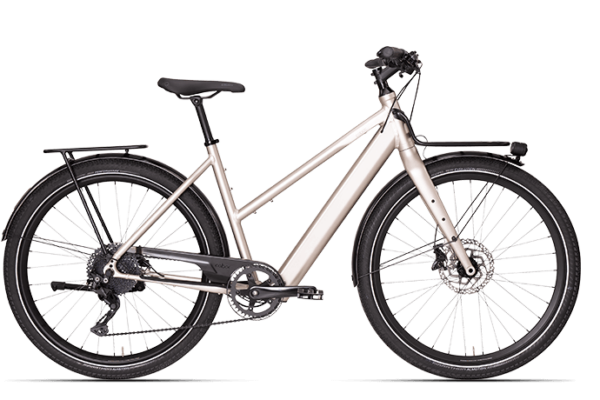

Bristol TPZ Electric Bike – All Colours
Functionality has never been more beautiful.
Pythagoras would be proud.
The Bristol comes to you either as a TPZ trapeze frame with a comfortable lowered top tube or as a classic DMD diamond frame.
For every taste.

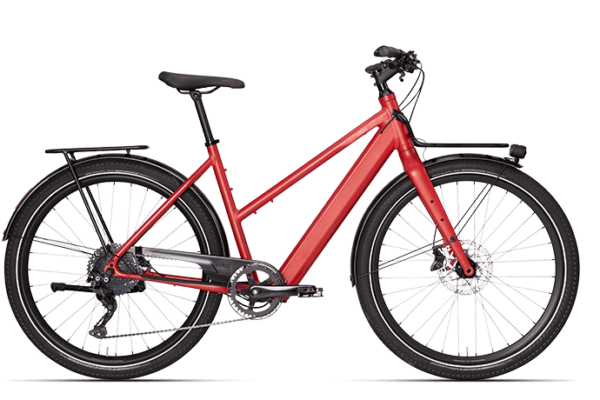

Elegant matt finish: The Bristol TPZ is available in Riesling Silver and District Red, the Bristol DMD in Anvil Grey and Workshop Blue.
See and be seen.
Reliable and approved: 550 lumens light up the road at the front, while the rear light integrated into the mudguard provides more than enough visibility for the back.
Award winning design.
The Bristol DMD was awarded the Focus E-Bike Design Award 2022: Top E-Bike Design in the CITY category.
Specifications.
Here you can find all information about the Bristol.
DRIVE SYSTEM
Coboc Electric Drive
BATTERY CAPACITY
380 Wh
BATTERY VOLTAGE
36 V
ELECTRIC DRIVE
250 W / 500 W peak
RANGE
75 – 110 km*
CHARGING TIME
2.5 hours
FRAME
Aluminium 6000
COLOR
District Red
FORK
Coboc Aluminium Fork, TA15
MECHANICAL DRIVE
SRAM NX, 11-speed, 40T/11-42
BRAKES
Riderever Arc-U,
hydr. disc brake,
V/H: 180 mm/160 mm
FRONT LIGHT
Litemove SE-110D
REAR LIGHT
B&M ILU SR, mudguard integrated
SADDLE
Selle Royal Essenza Plus
BELL
Coboc Cobell

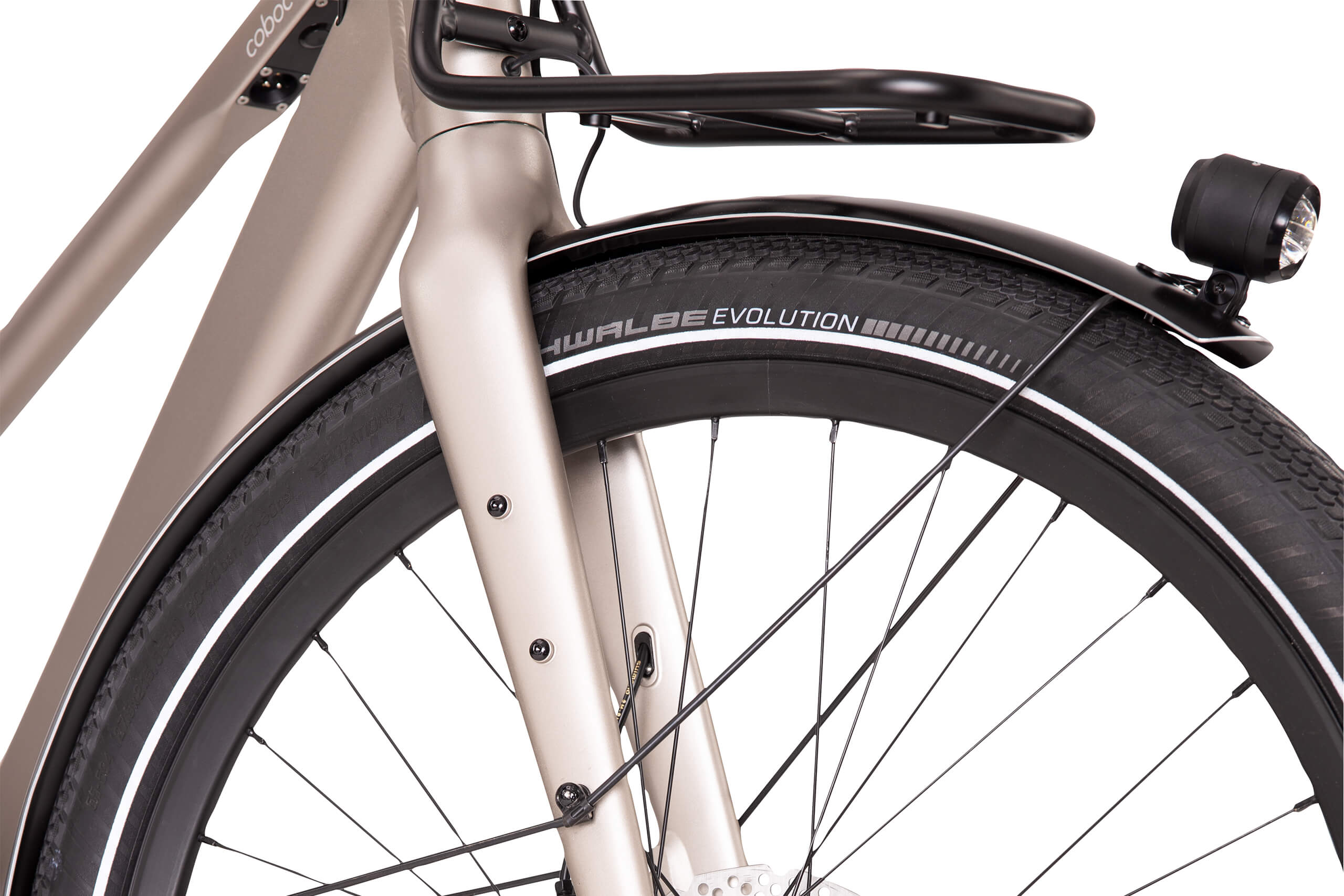

FRONT RACK
Coboc Headtube Rack, Racktime Snapit 2.0 (max. 10 kg)

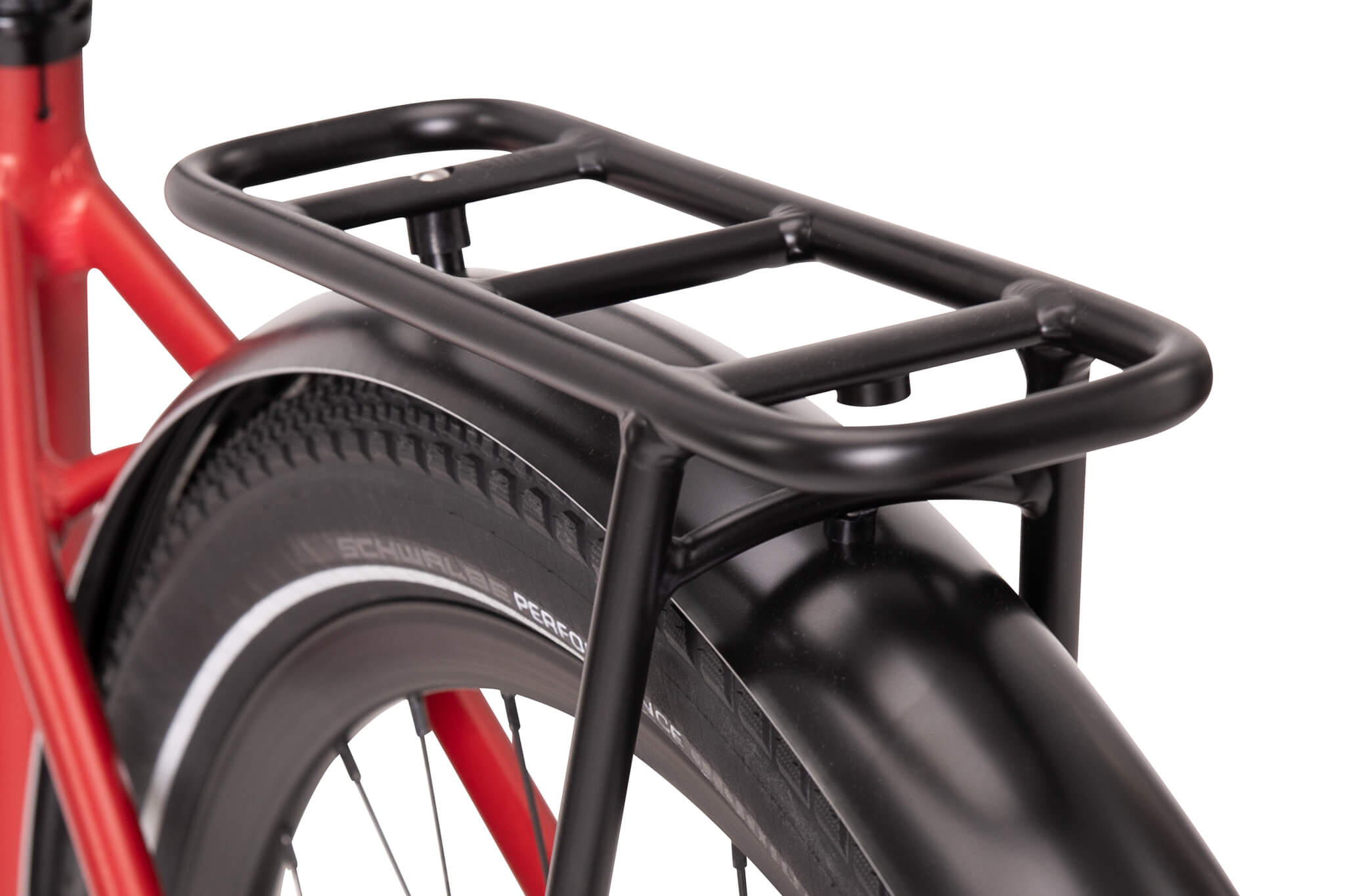

REAR RACK
Coboc Single-Leg Rack, Racktime Snapit 2.0 (max. 20 kg)
MUDGUARDS
Curana C-Lite 60 mm
TIRES
Schwalbe Marathon Almotion Performance RaceGuard 55-584
PEDALS
Coboc URB, Aluminium CNC
WEIGHT
18.1 kg
PERM. TOTAL WEIGHT
140 kg
SIZES
S: height 155-168 cm
M: height 165-178 cm
L: height 175-188 cm
